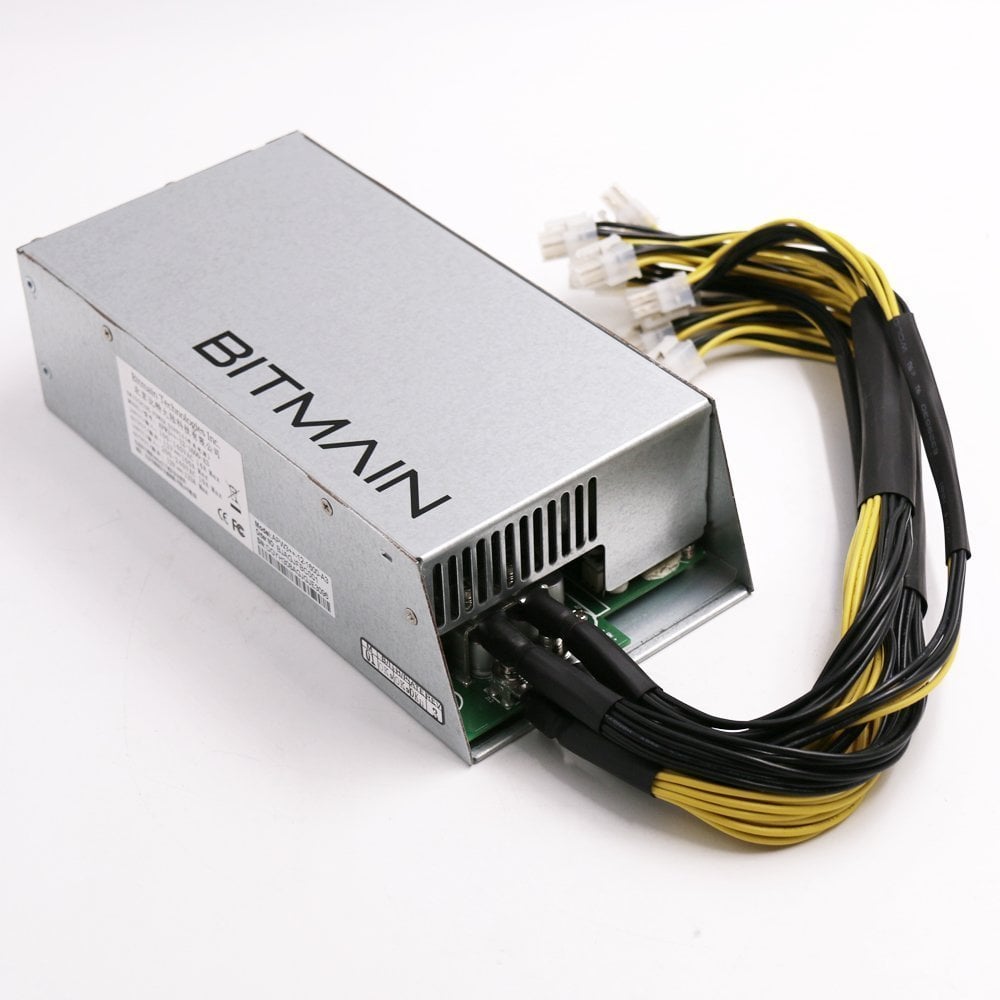

Bitmain APW3++ PSU

$150.00 On Sale

Image of Bitmain APW3++ PSU

NEW IN STOCK!

> FREE US PRIORITY 1-3 DAY SHIPPING <
*Go to checkout for international shipping fee

>SIGNATURE DELIVERY CONFIRMATION REQUIRED FOR ORDERS OF 2 OR MORE UNLESS WAIVED BY REQUEST<

This is a power supply for one Bitmain Antminer S9, L3+ or D3 miner. The APW3++ can deliver a maximum power of only 1200W if it is connected to a 110V mains power supply. To obtain the rated power of 1600W, the APW3++ must be connected to a 220-240V mains power supply. Please check the mains power supply that is the standard in your region before ordering.

Specification:
Output
- DC Voltage: 12.15V
- Rated Current(220V input): 133A
- Rated Current(110V input): 100A
- Rated Power(220V input): 1600W
- Rated Power(110V input): 1200W
- Ripple & Noise: <1%
- Voltage Regulation: <2%
- Source Regulation: <1%
- Load Regulation: <1%
- Setup, Rise Time: <2S
- Power off Protection Trip Time:>9mS
- Interface Type: 5 pairs of 6 pin PCI-E connectors (i.e. 10 connectors)
- Noise Level: <43DB

Input
- Voltage Range:100-240V AC
- Starting Voltage: 95-105V AC
- Frequency Range: 47-63Hz
- Power Factor: >0.95 (full load)
- Leakage Current: <1.5mA (220V 50Hz)

Protection
- Low-voltage Input:80-89V AC
- Output Short Circuit:Yes
- Output Overcurrent:134-185A max.
- Overheat Protection:Yes

- Operating Temperature:-20°C - 50°C
- Operating Humidity:20% - 90% relative humidity (non-condensing)
- Dimensions:220mm*108mm*62mm
- Cooling:Forced-air cooling
